Automated capture module
Automated multi-angle image capture designed for consistent visual documentation and traceability.
A fully automated multi-angle image capture station designed for consistent visual documentation and traceability in production and service environments.

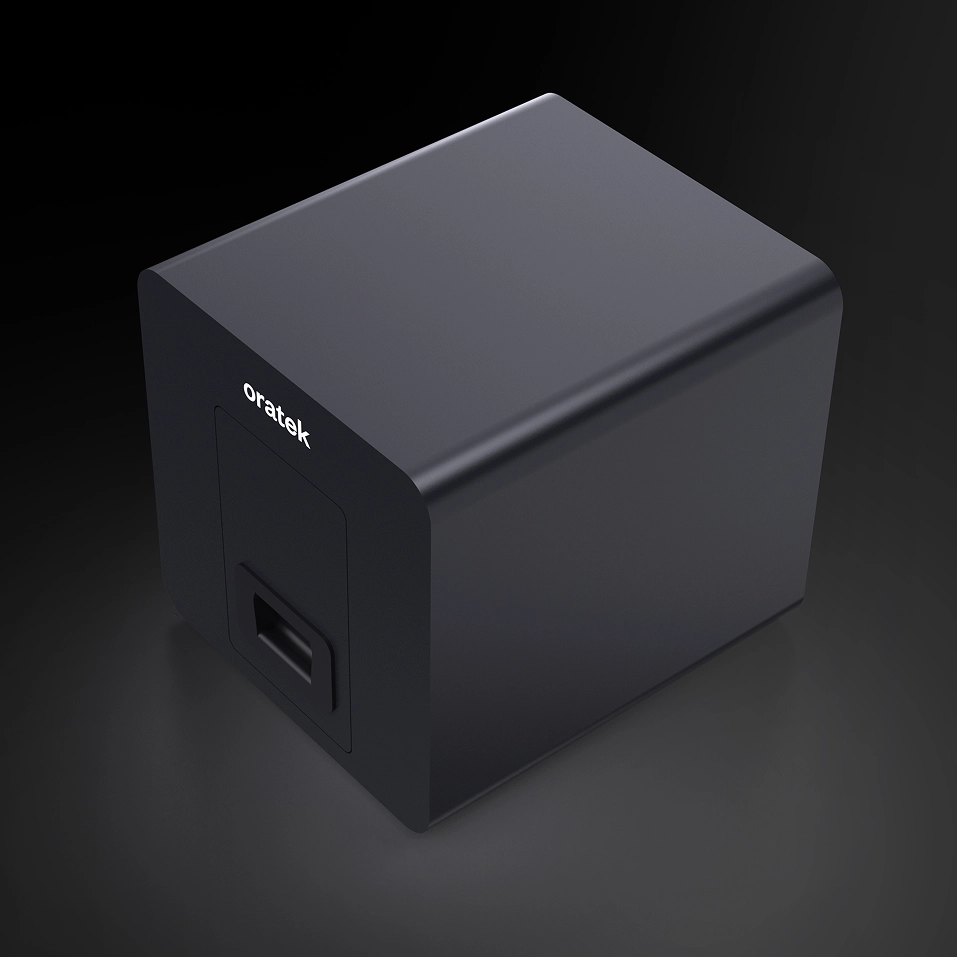

The ACM-8 automates image acquisition using synchronized cameras and controlled lighting to ensure repeatable, high-quality visual records.
Capture Quickly, Simply, Efficiently

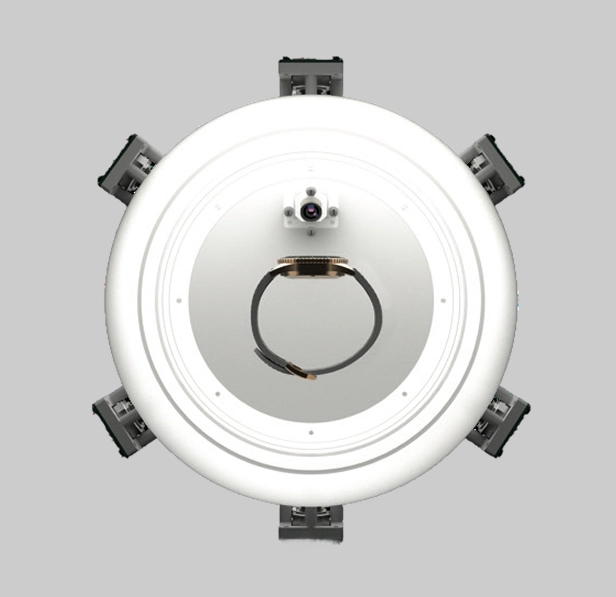

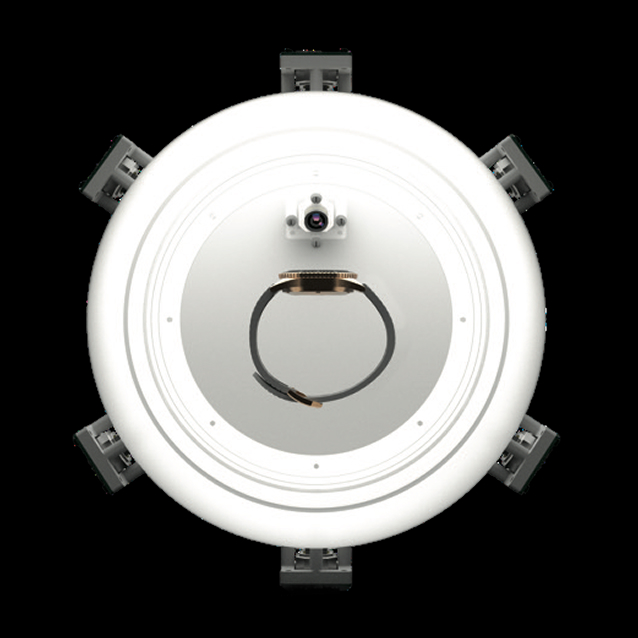

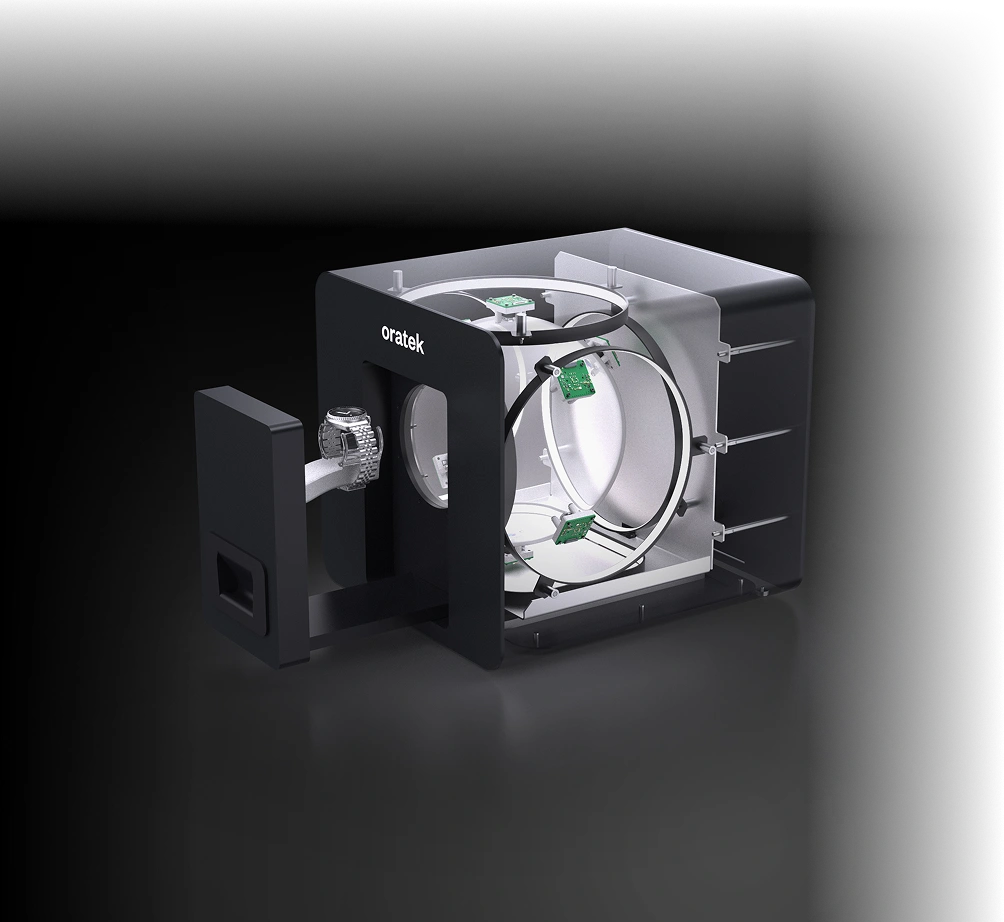

As soon as a watch or piece of jewellery is received or prepared for service, it is placed in the imaging chamber. Within seconds, eight synchronized cameras capture the object from multiple angles under controlled lighting conditions. The resulting images are automatically stored, creating a consistent, time-stamped visual record.
Metrological Accuracy
Consistent positioning and lighting for repeatable visual capture.
Open Data Pipeline
Export and integrate image data with MES, ERP, and quality systems.

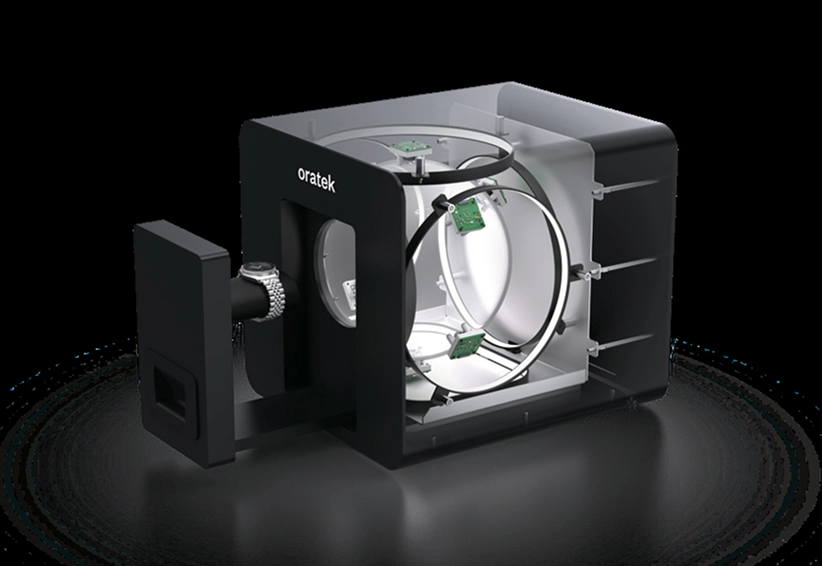

Mechanical Foundation
Robust mechanical design ensuring stability and repeatable capture conditions.
Designed for Traceability
Time-stamped image records designed to support traceability workflows.
Embedded and Scalable Web Application

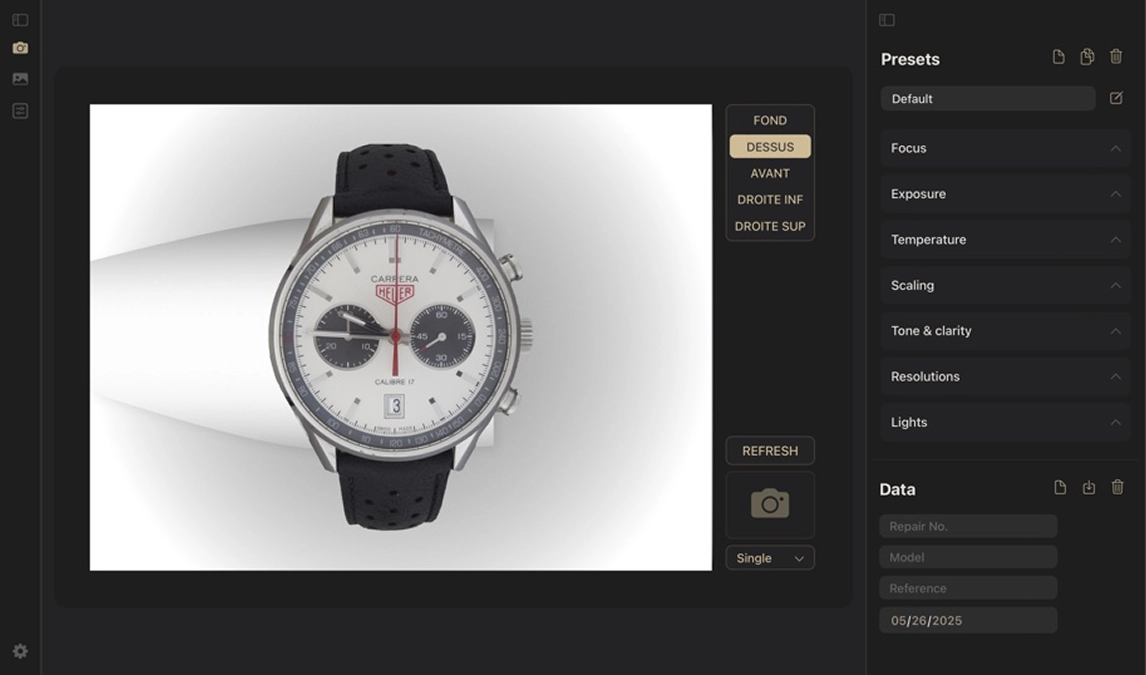

The ACM-8 is operated through a web-based application that requires no local installation. Accessible locally or remotely, it provides a unified interface to control image capture, manage configurations, and review captured data. The application is designed to be simple to use while remaining flexible enough to support different capture setups and workflows.
Specifications
